1.3. Angular 2 TypeScript environment configuration

This chapter uses TypeScript to create Angular applications, which is also officially recommended, and the examples of this tutorial will also be written in TypeScript.

TypeScript is a free and open source programming language developed by Microsoft. It is a superset of JavaScript and extends the syntax of JavaScript.

If you don’t know anything about TypeScript, you can check the following information:

TypeScript getting started tutorial
TypeScript Chinese Handbook

Before you start, you need to make sure that you have installed npm if you haven’t installed it yet npm or don’t understand. npm can check out our tutorial, introduction to using NPM.

Due to npm the domestic access to the official website image is too slow. Here I use Taobao’s npm image. Install the image as follows:

$ npm install -g cnpm --registry=https://registry.npmmirror.com

After execution, we can use the cnpm command to install the module:

$ cnpm install

1.3.1. Step 1: create and configure the project ¶

Create a directory ¶

$ mkdir angular-quickstart
$ cd angular-quickstart

1.3.2. Create a profile ¶

The Angular project requires the following configuration files:

package.json required for the notebook project npm dependent package.
tsconfig.json defines how the TypeScript compiler generates JavaScript code from the project source files.
typings.json additional definition files are provided for libraries thatare not recognized by the TypeScript compiler.
The systemjs.config.js module loader is provided with information about where to find the application module and registers all the necessary dependency packages. It also includes packages that will be used for later examples in the documentation.

In angular-quickstart create the following files in the following code:

`package.json` file: ¶

{
  "name": "angular-quickstart",
  "version": "1.0.0",
  "scripts": {
    "start": "tsc && concurrently \"npm run tsc:w\" \"npm run lite\" ",
    "lite": "lite-server",
    "postinstall": "typings install",
    "tsc": "tsc",
    "tsc:w": "tsc -w",
    "typings": "typings"
  },
  "license": "ISC",
  "dependencies": {
    "@angular/common": "2.0.0",
    "@angular/compiler": "2.0.0",
    "@angular/core": "2.0.0",
    "@angular/forms": "2.0.0",
    "@angular/http": "2.0.0",
    "@angular/platform-browser": "2.0.0",
    "@angular/platform-browser-dynamic": "2.0.0",
    "@angular/router": "3.0.0",
    "@angular/upgrade": "2.0.0",
    "core-js": "^2.4.1",
    "reflect-metadata": "^0.1.3",
    "rxjs": "5.0.0-beta.12",
    "systemjs": "0.19.27",
    "zone.js": "^0.6.23",
    "angular2-in-memory-web-api": "0.0.20",
    "bootstrap": "^3.3.6"
  },
  "devDependencies": {
    "concurrently": "^2.2.0",
    "lite-server": "^2.2.2",
    "typescript": "^2.3.4",
    "typings":"^1.3.2"
  }
}

`tsconfig.json` file: ¶

{
  "compilerOptions": {
    "target": "es5",
    "module": "commonjs",
    "moduleResolution": "node",
    "sourceMap": true,
    "emitDecoratorMetadata": true,
    "experimentalDecorators": true,
    "removeComments": false,
    "noImplicitAny": false
  }
}

`typings.json` file: ¶

{
  "globalDependencies": {
    "core-js": "registry:dt/core-js#0.0.0+20160725163759",
    "jasmine": "registry:dt/jasmine#2.2.0+20160621224255",
    "node": "registry:dt/node#6.0.0+20160909174046"
  }
}

`systemjs.config.js` file: ¶

/**
 * System configuration for Angular samples
 * Adjust as necessary for your application needs.
 */
(function (global) {
  System.config({
    paths: {
      // paths serve as alias
      'npm:': 'node_modules/'
    },
    // map tells the System loader where to look for things
    map: {
      // our app is within the app folder
      app: 'app',
      // angular bundles
      '@angular/core': 'npm:@angular/core/bundles/core.umd.js',
      '@angular/common': 'npm:@angular/common/bundles/common.umd.js',
      '@angular/compiler': 'npm:@angular/compiler/bundles/compiler.umd.js',
      '@angular/platform-browser': 'npm:@angular/platform-browser/bundles/platform-browser.umd.js',
      '@angular/platform-browser-dynamic': 'npm:@angular/platform-browser-dynamic/bundles/platform-browser-dynamic.umd.js',
      '@angular/http': 'npm:@angular/http/bundles/http.umd.js',
      '@angular/router': 'npm:@angular/router/bundles/router.umd.js',
      '@angular/forms': 'npm:@angular/forms/bundles/forms.umd.js',
      // other libraries
      'rxjs':                       'npm:rxjs',
      'angular2-in-memory-web-api': 'npm:angular2-in-memory-web-api',
    },
    // packages tells the System loader how to load when no filename and/or no extension
    packages: {
      app: {
        main: './main.js',
        defaultExtension: 'js'
      },
      rxjs: {
        defaultExtension: 'js'
      },
      'angular2-in-memory-web-api': {
        main: './index.js',
        defaultExtension: 'js'
      }
    }
  });
})(this);

Next, we use the cnpm command to install the dependency package:

$ cnpm install

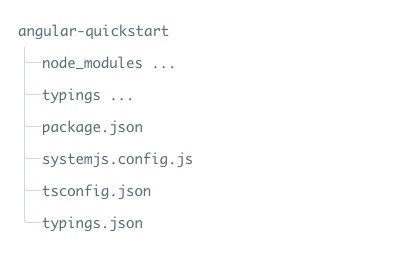

After a successful execution angular-quickstart will be generated under the directory node_modules directory, which contains the modules we need for this example. We can take a look at the directory structure of the project:

1.3.3. Step 2: create an application ¶

We use NgModules Angular applications are organized into functional code blocks.

Angular itself is split into some independent Angular modules, so we only need to import the required Angular parts in the application.

Each Angular application requires at least one root module (root module), which in the instance is AppModule.

Next, we are in angular-quickstart Create under the directory app table of contents:

$ mkdir app
$ cd app

And then in app create under the directory app.module.ts file, the code is as follows:

`app.module.ts` file: ¶

import { NgModule }      from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';

@NgModule({
  imports:      [ BrowserModule ]
})
export class AppModule { }

Due to QuickStart is a Web application running in a browser, so the root module needs to be derived from the @angular/platform-browser Import in BrowserModule and add to imports in the array.

1.3.4. Create components and add them to the application ¶

Each Angular application has at least one root component, which in the instance is AppComponent , app.component.ts ,the file code is as follows:

`app.component.ts` file: ¶

import { Component } from '@angular/core';
@Component({
  selector: 'my-app',
  template: '<h1>My first Angular application</h1>'
})
export class AppComponent { }

Code parsing:

The above code is derived from angular2/core introduced Component bag.
@Component is an Angular 2 decorator that associates a piece of metadata to the AppComponent on the component class.
my-app is a CSS selector that can be used in the HTML tag as a component.
@view contains a template to tell Angular how to render the view of the component
export specifies that the component can be used outside the file.

Next, let’s reopen it. app.module.ts files, importing new AppComponent and add it to the NgModule decorator’s declarations and bootstrap field:

`app.module.ts` file: ¶

import { NgModule }      from '@angular/core';
import { BrowserModule } from '@angular/platform-browser';
import { AppComponent }   from './app.component';
@NgModule({
  imports:      [ BrowserModule ],
  declarations: [ AppComponent ],
  bootstrap:    [ AppComponent ]
})
export class AppModule { }

1.3.5. Part IV: start the application ¶

Next we need to tell Angular how to start the application.

Create it under the angular-quickstart/app directory main.ts file, the code is as follows:

`main.ts` file: ¶

import { platformBrowserDynamic } from '@angular/platform-browser-dynamic';
import { AppModule } from './app.module';

const platform = platformBrowserDynamic();
platform.bootstrapModule(AppModule);

The above code initializes the platform, allows your code to run, and then starts your AppModule .

1.3.6. Define the host page for the application ¶

In angular-quickstart create under the directory index.html file, the code is as follows:

`index.html` file: ¶

<html>
  <head>
    <title>Angular 2 Example - Rookie Tutorial(runoob.com)</title>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1">
    <link rel="stylesheet" href="styles.css">
    <!-- 1. Load into storage -->
    <!-- IE Need polyfill -->
    <script src="node_modules/core-js/client/shim.min.js"></script>
    <script src="node_modules/zone.js/dist/zone.js"></script>
    <script src="node_modules/reflect-metadata/Reflect.js"></script>
    <script src="node_modules/systemjs/dist/system.src.js"></script>
    <!-- 2. Configuration SystemJS -->
    <script src="systemjs.config.js"></script>
    <script>
      System.import('app').catch(function(err){ console.error(err); });
    </script>
  </head>
  <!-- 3. display application -->
  <body>
    <my-app>Loading...</my-app>
  </body>
</html>

Here are some noteworthy points:

JavaScript Library: core-js is a filled library for older browsers. zone.js and reflect-metadata Libraries are required by Angular, while SystemJS the library is used for module loading.
SystemJS configuration files and scripts that can be imported and run as we just did in the main is written in the file. app module.
<my-app> tag is where the application is loaded.
