Ruby CGI programming
Ruby is a general language, not only a language for WEB development, but Ruby development in WEB applications and WEB tools is the most common.
With Ruby, you can not only write your own SMTP server, FTP program, or RubyWeb server, but also use Ruby for CGI programming.
Next, let’s take a moment to learn about CGI editing for Ruby.
Web browsing
To better understand how CGI works, we can start from clicking a link or URLprocess on a web page:
1.Use your browser to access URL and connect to the HTTP web server.
2.After receiving the request information, the Web server parses the URL and finds whether the accessed file exists on the server. If there is a content of the returned file, an error message is returned.
3.The browser receives information from the server and displays the received files or error messages.
CGI programs can be Ruby scripts, Python scripts, PERL scripts, SHELL scripts, C or C++ programs, etc.

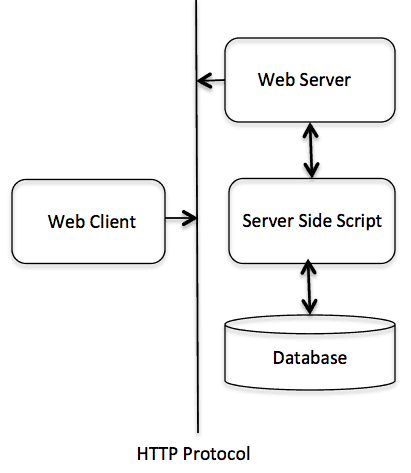

CGI architecture diagram
Web server support and configuration
Before you do CGI programming, make sure your Web server supports CGI and isconfigured with CGI handlers.
Apache supports CGI configuration:
Set up the CGI directory:
ScriptAlias /cgi-bin/ /var/www/cgi-bin/
All HTTP server execution CGI programs are saved in a preconfigured directory. This directory is called the CGI directory, and by convention, itis named the / var/www/cgi-bin directory.
The extension of the CGI file is .cgi Ruby can also be used .rb extension name.
By default, the Linux server configures the cgi-bin in the directory for /var/www .
If you want to specify a different directory to run the CGI script, you can modify it httpd.conf configuration file, as follows:
<Directory "/var/www/cgi-bin">
AllowOverride None
Options +ExecCGI
Order allow,deny
Allow from all
</Directory>
Add in AddHandler .rb suffix so that we can access the .rb Ruby script file at the end:
AddHandler cgi-script .cgi .pl .rb
Write CGI scripts
The most basic Ruby CGI code is as follows:
#!/usr/bin/ruby
puts "Content-type: text/html\n\n"
puts "<html><body>This is a test</body></html>"
You can keep this code in the test.cgi file, and the last time you went to the server and given sufficient permissions, it can be executed as a CGI script.
If the address of your station is http://www.example.com/, you can use http://www.example.com/test.cgi to access the program, and the output resultis “This is a test.”
After the browser visits the URL, the Web server will find it in the site directory test.cgi file, and then parse the script code and access the HTML document through the Ruby parser.
Use cgi.rb
Ruby can call the CGI library to write more complex CGI scripts.
The following code invokes the CGI library to create a CGI script for a script.
#!/usr/bin/ruby
require 'cgi'
cgi = CGI.new
puts cgi.header
puts "<html><body>This is a test</body></html>"
In the following code, the CGI object is created and the header information is printed.
Form processing
Using the CGI library, you can get data from a form submission (or parameters in URL) in two ways, such as URL:/cgi-bin/test.cgi?FirstName=Zara&LastName=Ali.
You can use CGI#[] to get the parameters directly FirstName and LastName :
#!/usr/bin/ruby
require 'cgi'
cgi = CGI.new
cgi['FirstName'] # => ["Zara"]
cgi['LastName'] # => ["Ali"]
Another way to get form data:
#!/usr/bin/ruby
require 'cgi'
cgi = CGI.new
h = cgi.params # => {"FirstName"=>["Zara"],"LastName"=>["Ali"]}
h['FirstName'] # => ["Zara"]
h['LastName'] # => ["Ali"]
The following code is used to retrieve all key values:
#!/usr/bin/ruby
require 'cgi'
cgi = CGI.new
cgi.keys # => ["FirstName", "LastName"]
If the form contains multiple fields with the same name, the value of the same field is saved in the array.
In the following example, specify three identical fields “name” in the form, with values of “Zara”, “Huma”, and “Nuha”, respectively:
#!/usr/bin/ruby
require 'cgi'
cgi = CGI.new
cgi['name'] # => "Zara"
cgi.params['name'] # => ["Zara", "Huma", "Nuha"]
cgi.keys # => ["name"]
cgi.params # => {"name"=>["Zara", "Huma", "Nuha"]}
Note: Ruby automatically determines the GET and POST methods, so there is noneed to treat the two methods differently.
The following is the relevant HML code:
<html>
<body>
<form method="POST" action="http://www.example.com/test.cgi">
First Name :<input type="text" name="FirstName" value="" />
<br />
Last Name :<input type="text" name="LastName" value="" />
<input type="submit" value="Submit Data" />
</form>
</body>
</html>
Create Form forms and HTML
CGI contains a number of methods to create HTML, and each HTML tag has a corresponding method. Before using these methods, you must pass the CGI.new to create a CGI object.
To make nesting of tags easier, these methods use the content as a code block, which returns a string as the content of the tag. As follows:
#!/usr/bin/ruby
require "cgi"
cgi = CGI.new("html4")
cgi.out{
cgi.html{
cgi.head{ "\n"+cgi.title{"This Is a Test"} } +
cgi.body{ "\n"+
cgi.form{"\n"+
cgi.hr +
cgi.h1 { "A Form: " } + "\n"+
cgi.textarea("get_text") +"\n"+
cgi.br +
cgi.submit
}
}
}
}
String escape
When you are dealing with parameters in URL or HTML form data, you need to escape specified special characters, such as quotation marks (“), backslashes (/).
The Ruby CGI object provides CGI.escape and CGI.unescape method tohandle the escape of these special characters
#!/usr/bin/ruby
require 'cgi'
puts CGI.escape(Zara Ali/A Sweet & Sour Girl")
The execution result of the above code is as follows:
#!/usr/bin/ruby
require 'cgi'
puts CGI.escape(Zara Ali/A Sweet & Sour Girl")
Another set of instances:
#!/usr/bin/ruby
require 'cgi'
puts CGI.escapeHTML('<h1>Zara Ali/A Sweet & Sour Girl</h1>')
The execution result of the above code is as follows:
<h1>Zara Ali/A Sweet & Sour Girl</h1>'
Methods commonly used in the CGI class
Here are the methods for the complete CGI class in Ruby
Ruby CGI-related methods of Standard CGI Library
